UTS Video.dll
跳至導覽
跳至搜尋
UTS_Video.dll[編輯]
Description[編輯]
- test image color./ test led color.
- average color which meet limit. (Cal_Avg_Color)
- maximum Gray value / minimum Gray value.
- cal --> Get_Result -->Show_Result
- 符合limit 的 pixels 數量 (Cal_Pixels)
- multiple block to analysis.
- alignment function to adjust position (offset position)
- 給一個目標的區域亮點(Cal_Match_Region) 讓他搜尋 找到後 回報x,y 座標. 找不到就回 -1,-1
- image resource:
- webcam (usb cam)
- picture (bmp format file)
File Contents[編輯]
- UTS_Video_dlg.exe
- UTS_Video.dll
Process procedure[編輯]
- 設定 IMAGE_SOURCE (Webcam or image) , 設定 webcam.
- web cam command index 如右圖
- 給予 區域 (想要分析 的 區域 可以是多組的)

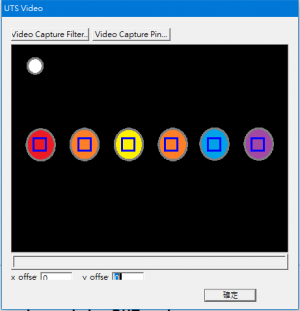

- 如右圖設定6個區域
- optional: cal_match_region (offset 校正)
- 要求開始分析

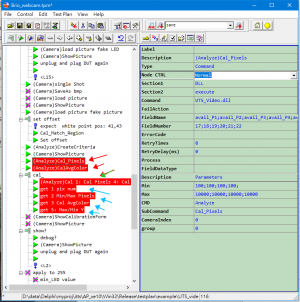

- 如右圖
- 判斷結果
remark[編輯]
判斷主動式發光源 (LED) 曝光時間 亮度都要調整. 以避免過曝
example[編輯]
| 分析與讀取分析後的參數 (copy scrip contents phase to scrip editor) |
|---|
<Item>
<Text> </Text>
<Description> (Analyze)Cal_Pixels</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> avail_P1;avail_P2;avail_P3;avail_P4;avail_P5;avail_P6</FieldName>
<FieldNumber> 17;18;19;20;21;22</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content>100;100;100;100;</Content>
<Description>Min</Description>
</i1>
<i2>
<Content>10000;10000;10000;10000</Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Cal_Pixels</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content>0</Content>
<Description>group</Description>
</i6>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> (Analyze)CalAvgColor</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> R1;G1;B1;R2;G2;B2;R3;G3;B3;R4;G4;B4;R5;G5;B5;R6;G6;B6;</FieldName>
<FieldNumber> 23;24;25;26;27;28;29;30;31;32;33;34;35;36;37;38;39;40;</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Cal_AvgColor</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content>0</Content>
<Description>group</Description>
</i6>
<i7>
<Content>back_r=100;
back_g=100; back_b=100;</Content> <Description>background</Description>
</i7>
</Parameter>
</Item>
<Item>
<Text> cal_</Text>
<Description> </Description>
<ItemType> 1</ItemType>
<Skip> 1</Skip>
<SubItem>
<Item>
<Text> </Text>
<Description> (Analyze)Cal 1: Cal Pixels
4: Cal AvgColor
8: Brightness</Description> <ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> avail_P1</FieldName>
<FieldNumber> 17</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Cal</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content>0</Content>
<Description>group</Description>
</i6>
<i7>
<Content>13</Content>
<Description>test case</Description>
</i7>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> get 1 pix num</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> pix_nums1;pix_nums2;pix_nums3;pix_nums4;pix_nums5;pix_nums6;</FieldName>
<FieldNumber> 41;42;43;44;45;46;</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Get_Result</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content>-1</Content>
<Description>group</Description>
</i6>
<i7>
<Content>1</Content>
<Description>test case</Description>
</i7>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> get 2 Min/Max Pixels</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> min_i;min_y;max_i;max_y;</FieldName>
<FieldNumber> 47;48;49;50;</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Get_Result</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content>-1</Content>
<Description>group</Description>
</i6>
<i7>
<Content>2</Content>
<Description>test case</Description>
</i7>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> get 3 Cal AvgColor</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> R1;G1;B1;R2;G2;B2;R3;G3;B3;R4;G4;B4;R5;G5;B5;R6;G6;B6;</FieldName>
<FieldNumber> 23;24;25;26;27;28;29;30;31;32;33;34;35;36;37;38;39;40;</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Get_Result</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content>-1</Content>
<Description>group</Description>
</i6>
<i7>
<Content>3</Content>
<Description>test case</Description>
</i7>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> get 5: Max/Min Y</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> min_i;min_Y;max_i;max_Y</FieldName>
<FieldNumber> 47;48;49;50</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Get_Result</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content>-1</Content>
<Description>group</Description>
</i6>
<i7>
<Content>5</Content>
<Description>test case</Description>
</i7>
</Parameter>
</Item>
</SubItem>
</Item>
|
| Brio WebCam setting 參考右圖的指令號碼 (copy scrip contents phase to scrip editor) |
|---|
<Item>
<Text> Brio camera setting</Text>
<Description> </Description>
<ItemType> 1</ItemType>
<Skip> 1</Skip>
<SubItem>
<Item>
<Text> </Text>
<Description> Zoom 100-500 auto</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>23</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>100</Content>
<Description>value</Description>
</i7>
<i8>
<Content>1</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> Zoom 100-500 200</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>23</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>200</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> Zoom 100-500 500</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>23</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>500</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 24 exposure -11 ~ auto</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>24</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content></Content>
<Description>value</Description>
</i7>
<i8>
<Content>1</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 24 exposure -11 ~ -11</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>24</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>-11</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 24 exposure -11 ~ -5</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>24</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>-5</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 24 exposure -11 ~ -2</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>24</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>-2</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 26 focus macro 0~255 auto</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>26</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content></Content>
<Description>value</Description>
</i7>
<i8>
<Content>1</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 26 focus macro 0~255 0</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>26</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>0</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 26 focus macro 0~255 255</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>26</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>255</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 0_brightness 0~255 0</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>0</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>0</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 0_brightness 0~255 128</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>0</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>128</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 0_brightness 0~255 255</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>0</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>255</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 1_Contrast0~255 0</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>1</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>0</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 1_Contrast0~255 128</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>1</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>128</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 1_Contrast0~255 20 255</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>1</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>255</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 3_Saturation 0~255 0</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>3</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>0</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 3_Saturation 0~255 128</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>3</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>128</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 3_Saturation 0~255 255</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>3</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>255</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 4_sharpness 0-255 0</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>4</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>0</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 4_sharpness 0-255 128</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>4</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>128</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 4_sharpness 0-255 255</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>4</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>255</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 7_WhiteBalance 2000-7500 auto</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>7</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content></Content>
<Description>value</Description>
</i7>
<i8>
<Content>1</Content>
<Description>auto1 manual2</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 7_WhiteBalance 2000-7500 2000</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>7</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>2000</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 7_WhiteBalance 2000-7500 5260</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>7</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>5260</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 7_WhiteBalance 2000-7500 7500</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>7</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>7500</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 9_gain 0-255 0</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>9</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>0</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> 9_gain 0-255 0</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> CameraName</FieldName>
<FieldNumber> 12</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Camera</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>SetProperty</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>index</Description>
</i5>
<i6>
<Content>9</Content>
<Description>cmd</Description>
</i6>
<i7>
<Content>255</Content>
<Description>value</Description>
</i7>
<i8>
<Content>2</Content>
<Description>manual</Description>
</i8>
</Parameter>
</Item>
</SubItem>
</Item>
|
| cal_match_region (offset 校正 search left up white dot搜尋左上角的白點位置) (copy scrip contents phase to scrip editor) |
|---|
<Item>
<Text> set offset</Text>
<Description> </Description>
<ItemType> 1</ItemType>
<Skip> 1</Skip>
<SubItem>
<Item>
<Text> </Text>
<Description> expect white point pos: 41,43</Description>
<ItemType> 3</ItemType>
<Skip> 1</Skip>
</Item>
<Item>
<Text> </Text>
<Description> Cal_Match_Region</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> pos_x_offset;Pos_Y_offset</FieldName>
<FieldNumber> 14;15</FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> pos_x_offset=['&F:01']-41;pos_Y_offset=['&F:02']-43;</Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Cal_Match_Region</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content>200</Content>
<Description>min_y</Description>
</i6>
<i7>
<Content>255</Content>
<Description>Max_y</Description>
</i7>
<i8>
<Content>10</Content>
<Description>Region_w</Description>
</i8>
<i9>
<Content>10</Content>
<Description>Region_h</Description>
</i9>
<i10>
<Content>50</Content>
<Description>Pics_sameRow</Description>
</i10>
</Parameter>
</Item>
<Item>
<Text> </Text>
<Description> Set offset</Description>
<ItemType> 2</ItemType>
<Skip> 1</Skip>
<ItemSection1> DLL</ItemSection1>
<ItemSection2> execute</ItemSection2>
<ItemCommand> UTS_Video.dll</ItemCommand>
<FailAction> </FailAction>
<FieldName> </FieldName>
<FieldNumber> </FieldNumber>
<ErrorCode> </ErrorCode>
<RetryTimes> 0</RetryTimes>
<RetryDelay> 0</RetryDelay>
<Process> </Process>
<FieldType> </FieldType>
<Parameter>
<i1>
<Content></Content>
<Description>Min</Description>
</i1>
<i2>
<Content></Content>
<Description>Max</Description>
</i2>
<i3>
<Content>Analyze</Content>
<Description>CMD</Description>
</i3>
<i4>
<Content>Set_Offset</Content>
<Description>SubCommand</Description>
</i4>
<i5>
<Content>0</Content>
<Description>CameraIndex</Description>
</i5>
<i6>
<Content></Content>
<Description>Value6</Description>
</i6>
<i7>
<Content>['&VAR:pos_x_offset']</Content>
<Description>X offset</Description>
</i7>
<i8>
<Content>['&VAR:pos_Y_offset']</Content>
<Description>Y_offset</Description>
</i8>
</Parameter>
</Item>
</SubItem>
</Item>
|
| Description here (copy scrip contents phase to scrip editor) |
|---|
Brio WebCam 完整的腳本範例[編輯]
相關開發工具[編輯]
- UTS_Video_dlg.exe 有些不方便的地方. 可以用 台趣新開發的 image_crop.exe 工具來觀察 USB webcam 的設置. Image_crop in wiki
- A4 paper Ruler for fixture setup 如右圖
- 檔案:Ruller A4.pdf
- 下載PDF 列印時以100% 列印 不縮圖
- 檔案:Ruller A4.pdf
